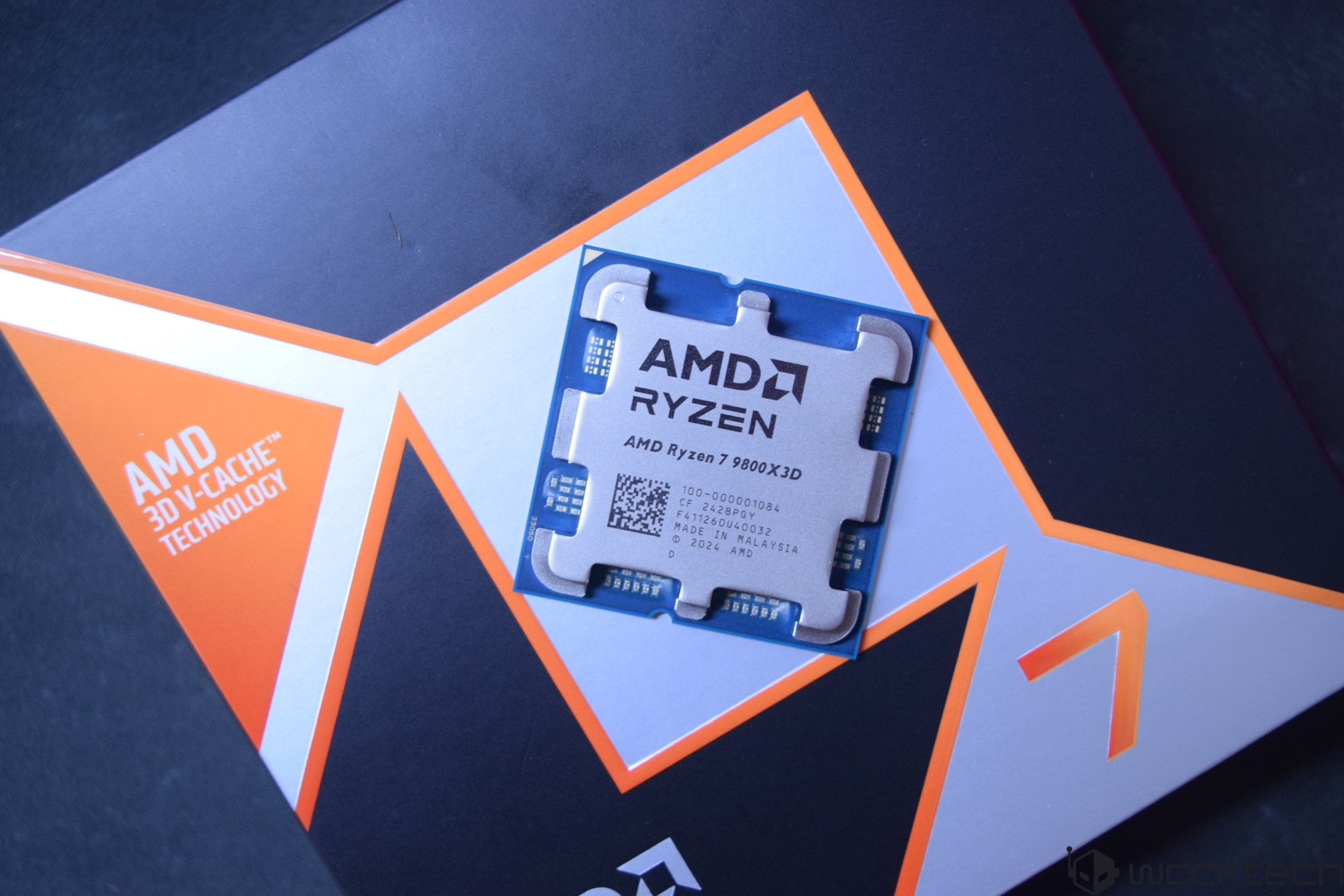

AMD Ryzen 7 9800X3D Processor

Overview

AMD created Ryzen 7 9800X3D as an answer to the question: what processor a gamer needs when they want maximum FPS without overpaying for extra cores? In games fast cores, a large cache and single-thread speed often matter more than 12 or 16 threads sitting idle. That is why the 8-core Ryzen with 96 MB of L3 in real gaming tests outperforms many competitors with twice as many cores.

The key difference from standard Ryzen 9000 chips is technology second-generation AMD 3D V-Cache generation. The additional die of cache-memory is now placed under the cores CCD die, not above it. This significantly improved heat dissipation by reducing thermal resistance by 46% and allowed the processor to sustain a higher clock frequency compared with the previous generation 7800X3D. As a result, the processor wins not only because of its cache, but also because of raw coresspeed, becoming the first fully unlocked chip in the series for safe overclocking.

Specifications

Key specifications

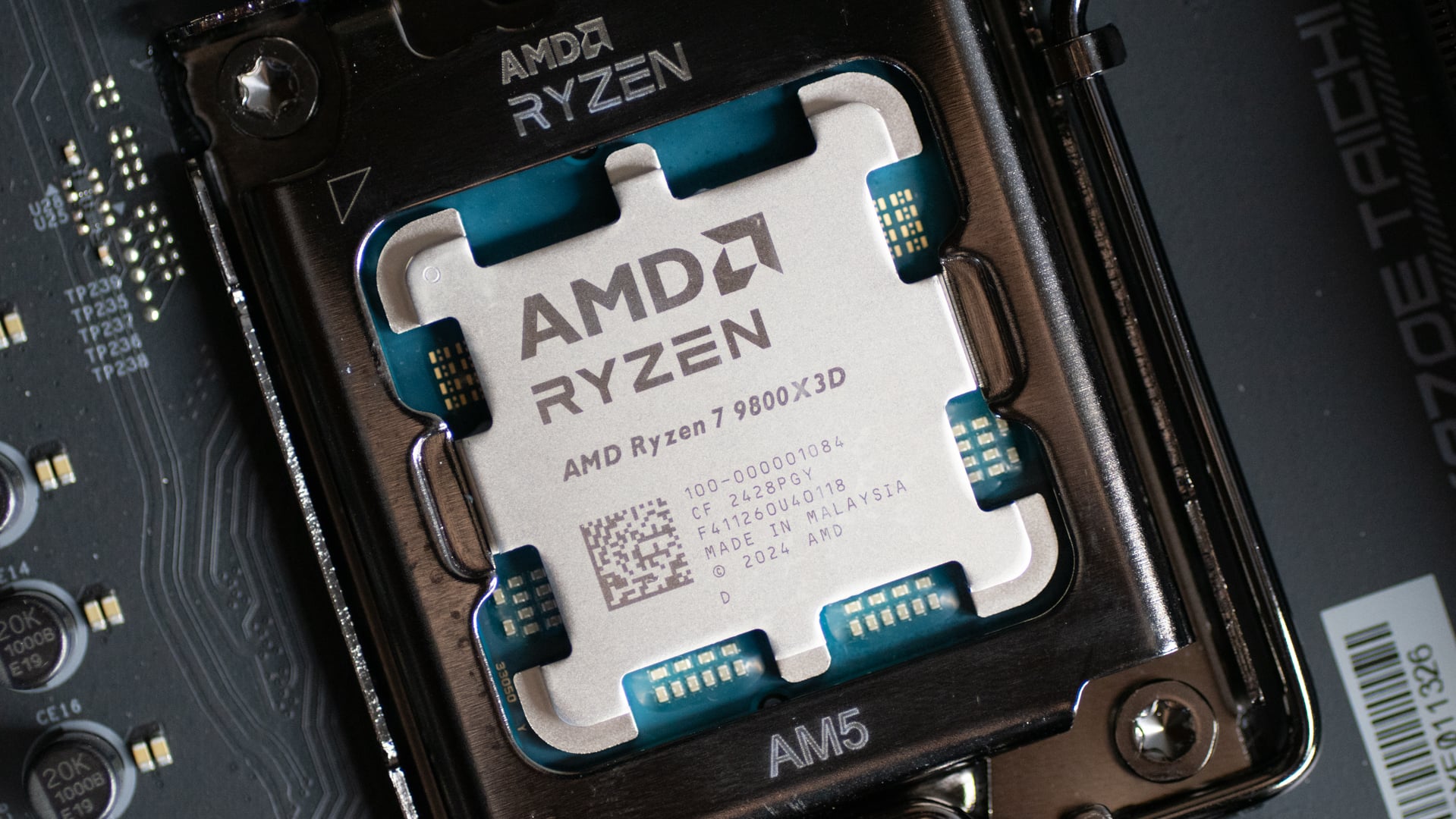

Processor is supplied in BOX and OEM (without a cooler and retail box), which is a standard package for system builders and onlinestores. OEMversion is more attractive in price and is functionally identical to the boxed version. Neither version includes a cooler: AMD recommends a high-performance liquid cooler or a quality air cooler. When building a PC yourself, remember physical safety: the delicate LGA1718 socket on AM5 motherboards is easy to damage during careless CPU installation, which immediately voids the motherboard warranty.

Clock specifications

The 4.7-5.2 GHz range is a noticeable increase over Ryzen 7 7800X3D with its 5.0 GHz. It is this higher operating frequency together with the large cache that gives a new level of gaming performance.

Cache

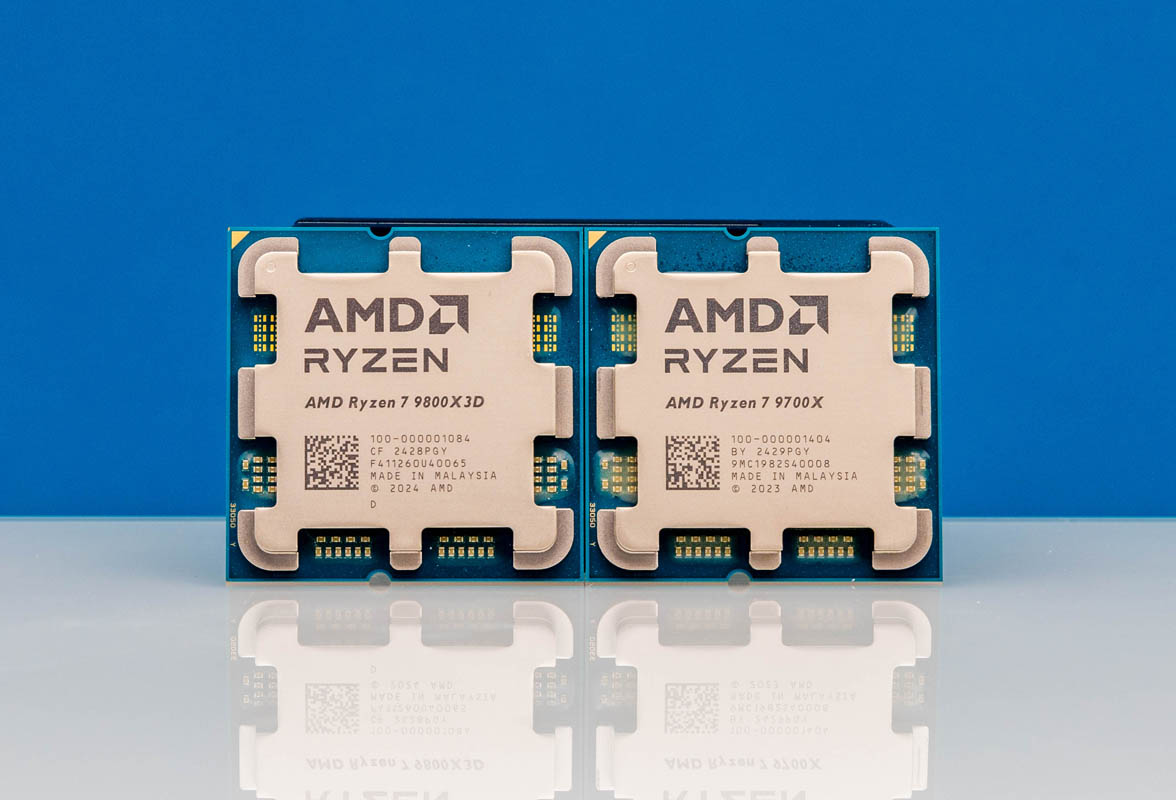

For comparison, the Ryzen 7 9700X without additional cache has only 32 MB of L3. The 64 MB difference directly affects FPS in games — the more data a game takes from fast cache, rather than system memory, the lower the latency and the more stable the frame time.

Performance

Rare-dip metrics are especially important (1% Low FPS). In Homeworld 3, the Ryzen 7 9800X3D was the first in tests to raise 1% Low above 60 FPS, showing a 21% gain compared with the 7800X3D.

Comparison with other processors

Comparison of key competitors:

Ryzen 7 9800X3D vs Intel Core i9-14900K: the average gain across a set of 14 games is about 27% in favor of AMD. Ryzen 7 9800X3D vs Intel Core Ultra 9 285K: about 33% in favor of AMD. At the same time, processors Intel consume in games 130-150 W, whereas AMD is about 90-95 W.

Ryzen 7 9800X3D vs Ryzen 7 9850X3D: the difference in favor of the 9850X3D is only 3-8% at 1080p, with a higher price ($499 MSRP). The 9800X3D gain over the Ryzen 7 9700X is about 30% thanks to technologies 3D V-Cache.

Technologies and compatibility

Only system memory of the DDR5 standard is supported. The recommended capacity is 32 GB of DDR5 6000 MHz with EXPO overclocking profiles, which provide a synchronous 1:1 controller mode with minimal latency.

Reviews and feedback

Independent tests confirm: Ryzen 7 9800X3D is the best gaming processor on the market. Users note stable FPS in heavy open-world games, moderate temperatures, and the long-lived AM5 platform. The downsides are price and the absence of a bundled cooler. Be careful when buying on marketplaces: avoid questionable unofficial sellers so you do not end up buying counterfeit or scalped chips.

Where to buy and delivery

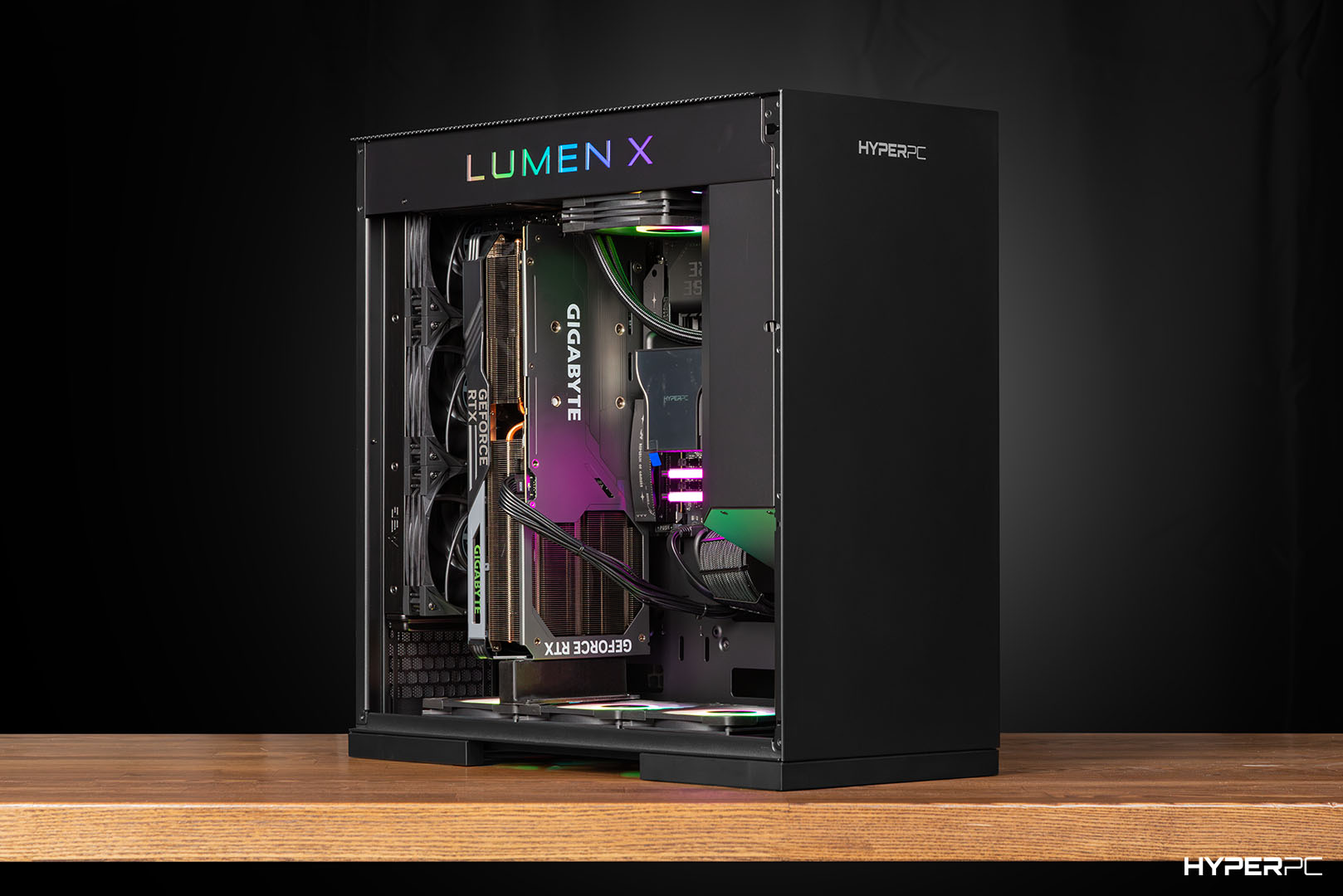

Buying processor as part of a ready-built HYPERPC PC protects you from the risk of damaging expensive silicon during a self-build. The online-store offers ready-made balanced gaming computers with Ryzen 7 9800X3D:

• LUMEN 5 is a powerful gaming station for gaming at 1440p
• LUMEN 6 is an enhanced build for high FPS at 1440p and a comfortable entry into 4K
• LUMEN 7 is the ultimate flagship for maximum 4Kgaming with ray tracing

HYPERPC computers with AMD Ryzen 7 9800X3D

Options and accessories

Warranty and support

The official AMD warranty is 3 years. When buying as part of a ready-built HYPERPC PC, comprehensive warranty service applies to the whole system for 12 to 36 months, with qualified technical support through the website and popular messengers.
