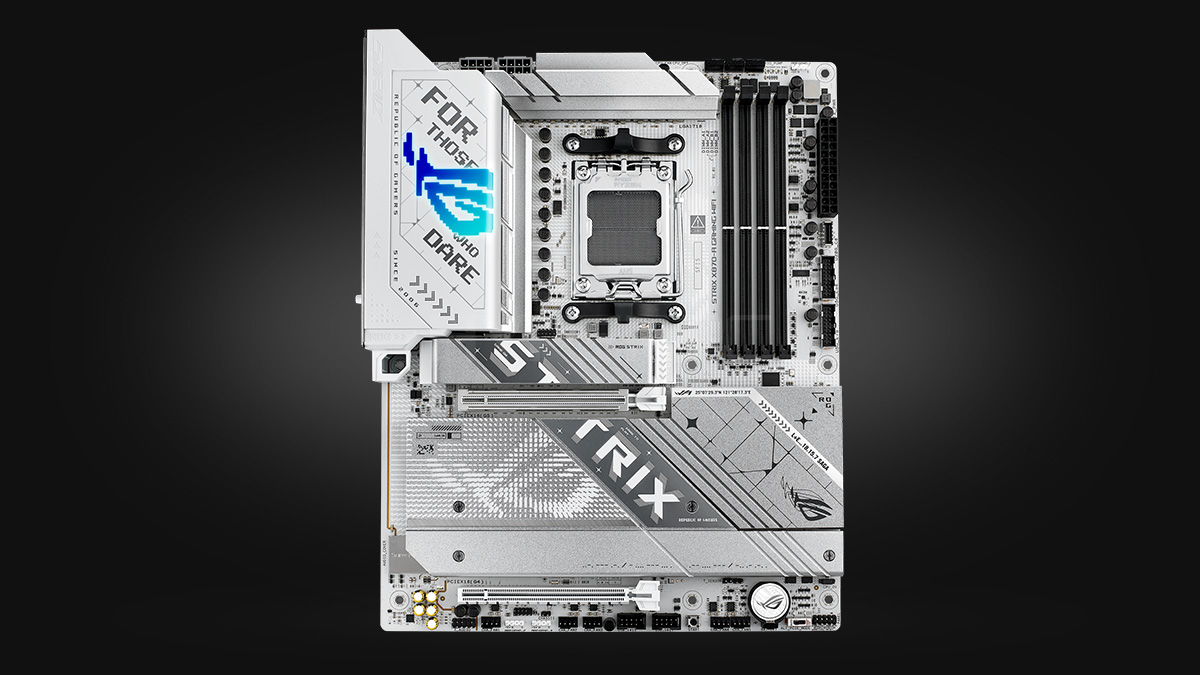

ASUS ROG STRIX X870-A GAMING [DDR5, Wi-Fi]

The ASUS ROG Strix X870-A Gaming is a motherboard with a sleek white surface and support for AMD Ryzen™ 9000 series processors, providing the power and connectivity needed for advanced AI applications. With support for DDR5, full PCIe 5.0 capabilities, dual USB4 ports, and WiFi 7, it offers the perfect combination of style and performance.

Available for purchase only as an upgrade for your PC at our upgrade center

Price AED 2,050

Total cost AED 2,050

Including VAT AED 98

Loan calculator

Backorder Only for upgrade Ask for details

Need help? Ask for advice

Performance

Dual ProCool II power connectors
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series processors
Expansion slots
- 1 x PCIe 5.0 x16 SafeSlot
- 1 x PCIe 4.0 x16 Slots (x4)
16(90A)+2(90A)+2(80A) power module
DDR5 8000+ MT/s (OC)
- 4 x DIMM
- Dual-channel mode
4 x M.2 slots
- 1 x M.2 22110 (PCIe 5.0 x4)
- 1 x M.2 2280 (PCIe 5.0 x4)
- 2 x M.2 2280 (PCIe 4.0 x4)

Cooling

Power system heatsinks
Heatsinks for four M.2 slots
Liquid cooling pump connector
Chipset heatsink
Connectors for five 4-pin PWM fans

Gaming Immersion

Aura Lighting
SupremeFX 7.1 ALC4080 audio codec
- Savitech SV3H712 AMP
- Stereo output (signal-to-noise ratio 120 dB)
- Line input (signal-to-noise ratio 110 dB)
Dolby Atmos surround sound technology
Three addressable RGB headers (3-pin)

Connectivity

1 X Display port
Clear CMOS button
BIOS Flashback button
1 X HDMI port
2 x USB4 (40Gbps) ports
(USB Type-C)
1 x Intel 2.5Gb Ethernet port
6 x USB (10 Gbps) ports
(5 x Type-A + 1 x USB Type-C with fast charging up to 30W)
4 x USB (5 Gbps) ports
(4 x Type-A)
Wi-Fi 7
Optical S/PDIF output
2 audio jacks
1 internal USB 20Gbps connector
(USB Type-C support)
2 internal USB 5Gbps connectors
(support for 4 x USB 5Gbps)
2 SATA 6Gb/s ports

AI Overclocking

Tuning is now faster and smarter than ever before. ASUS AI Overclocking analyzes the processor and cooling system to predict optimal settings and push the system to its limits. The predicted values can be applied automatically or used as a starting point for further experimentation.

PCIE 5.0

M.2 Slots

Two of the built-in M.2 slots, thanks to the PCIe 5.0 interface, can achieve read and write speeds of 16 GB/s, while all others support impressive data transfer speeds of 8 GB/s. Each M.2 slot is covered by robust heatsinks to dissipate heat from next-generation drives.

PCIE 5.0 Expansion Slots

Fully compliant with the new standard, Strix X870-A offers seamless support for PCIe 5.0. The top x16 expansion slot supports Gen 5 and is reinforced with a SafeSlot retention bracket to handle the weight of the latest graphics cards.

AI Networking II

AI Networking II combines intelligent technologies to continuously optimize network performance, ensure reliable and uninterrupted connectivity, and unlock the full speed of WiFi 7.

DDR5 Dominance

For those looking to surpass standard DDR5 speeds, Strix X870-A is ready with extensive support for AMD overclocking profiles (EXPO). Experienced users can further enhance performance using a comprehensive set of settings in the UEFI.

Heatsink Array

Two VRM heatsinks provide ample surface area and mass to increase heat dissipation when working with high-performance AMD Ryzen™ 9000 Series processors.

ASUS ROG STRIX X870-A GAMING [DDR5, Wi-Fi] specs

General characteristics
Socket	AM5
Supported processors	AMD Ryzen 7000-8000-9000
Form factor	ATX
Chipset	AMD X870
Memory
Number of memory slots	4
Memory	DDR5 DIMM, 4800-8000 MHz
Number of memory channels	two-channel
Maximum memory capacity	192 GB
Disk controllers
Number of SATA 6Gb/s connectors	2
Number of M.2 slots	4
Slot type M.2	M.2_1 supports PCIe 5.0 x4 mode, M.2_2 supports PCIe 5.0 x4 mode, M.2_3 and M.2_4 support PCIe 4.0 x4 mode
Expansion slots
Number of PCI-E x16 slots	3
Audio / Video
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Network
Ethernet	1 x Intel® 2.5Gb
Wi-Fi	802.11be
Bluetooth	yes
Rear Connectors	2 x USB4® (40Gbps), 6 x USB 10Gbps, 4 x USB 5Gbps
Cooling system type	passive
