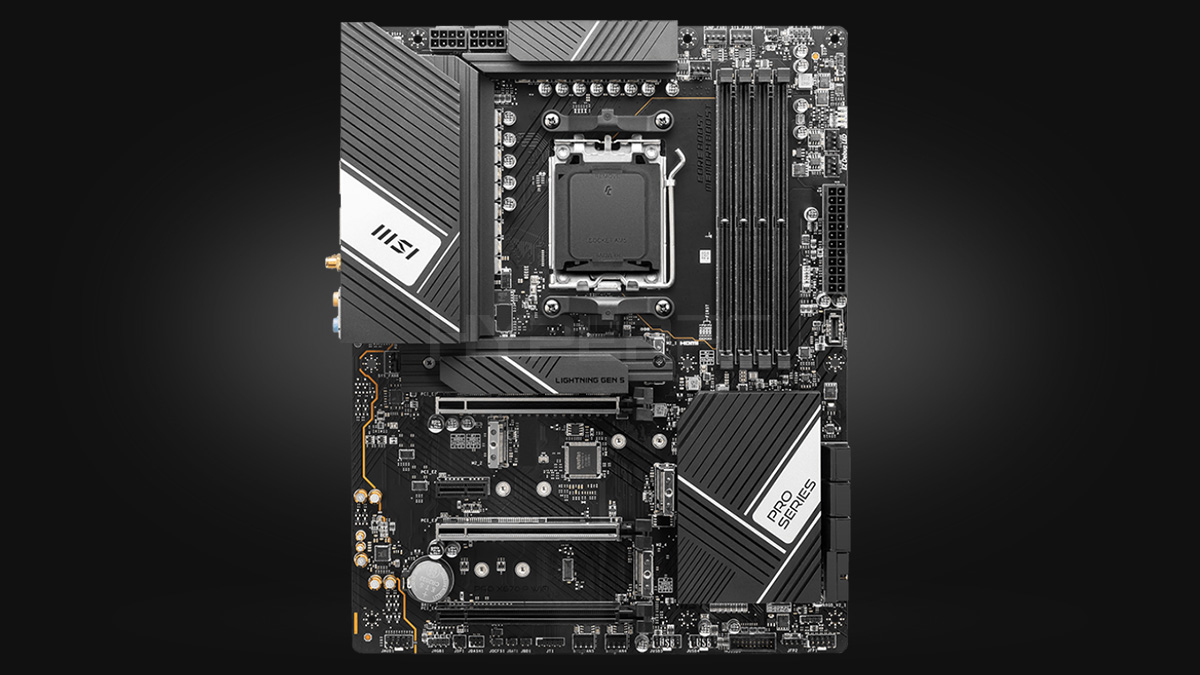

The PRO X670-P WIFI model offers extensive functionality and an integrated Wi-Fi module, combined with DDR5 memory support. The PRO series is designed for professionals working in various fields. These devices are distinguished by their high-quality manufacturing, excellent performance, and ease of use. Choose the MSI PRO series to work more productively and efficiently!
General characteristics | |
---|---|
Socket | AM5 |
Supported processors | AMD Ryzen 7000 |
Form factor | ATX |
Chipset | AMD X670 |
Memory | |
Number of memory slots | 4 |
Memory | DDR5 DIMM, 4800-7800 MHz |
Number of memory channels | two-channel |
Maximum memory capacity | 192 GB |
Disk controllers | |
Number of SATA 6Gb/s connectors | 6 |
Number of M.2 slots | 4 |
RAID support | RAID: 0, 1, 10 |
Slot type M.2 | (M) 2280/22110 PCIe 5.0 x4, 3 x (M) 2260/2280 PCIe 4.0 x4 |
Expansion slots | |
Number of PCI-E x16 slots | 3 |
Number of PCI-E x1 slots | 1 |
Audio / Video | |
Audio | Realtek ALC4080 |
Network | |
Ethernet | 2.5 Гбит/с |
Wi-Fi | 802.11ax |
Bluetooth | yes |
Rear Connectors | USB 3.2 Gen1 Type A x4, USB 3.2 Gen2 Type-C, USB 3.2 Gen2 Type A x2, USB 3.2 Gen2x2 Type-C |
Cooling system type | passive |
