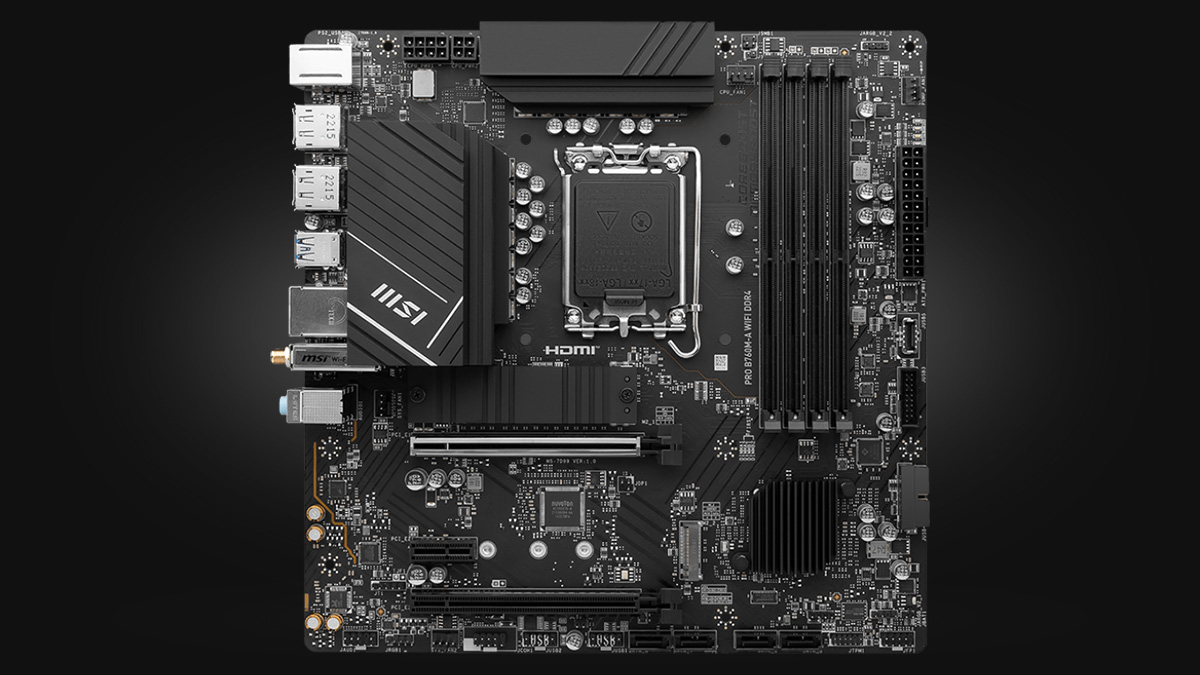

The MSI PRO B760M-A WIFI DDR4 motherboard can provide high performance and stability when performing various tasks. It is designed for assembling a general-purpose workstation.
General characteristics | |
---|---|
Socket | LGA1700 |
Supported processors | Intel Core 12/13/14th |
Form factor | microATX |
Chipset | Intel B760 |
Memory | |
Number of memory slots | 4 |
Memory | DDR4 DIMM, 2133-5333 MHz |
Number of memory channels | two-channel |
Maximum memory capacity | 128 GB |
Disk controllers | |
Number of SATA 6Gb/s connectors | 4 |
Number of M.2 slots | 2 |
RAID support | RAID: 0, 1, 5, 10 |
Expansion slots | |
Number of PCI-E x16 slots | 2 |
Audio / Video | |
Audio | Realtek ALC897 |
Network | |
Ethernet | 2.5 Gbit/s |
Wi-Fi | 802.11ax |
Bluetooth | yes |
Cooling system type | passive |
