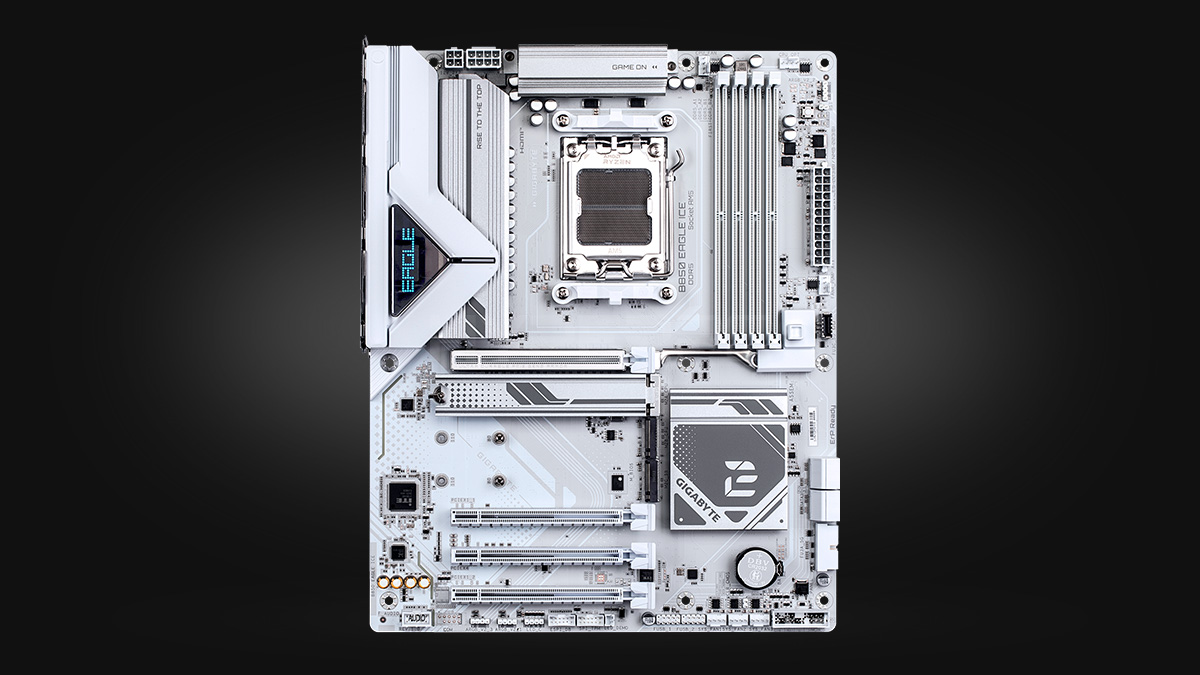

The Gigabyte B850 EAGLE WIFI7 ICE motherboard is a modern and high-performance solution for building a powerful PC based on AMD Ryzen 9000, 8000 and 7000 series processors. It combines cutting-edge technology, reliability and stylish white design, making it an excellent choice for both gamers and professionals working with resource-intensive applications.
| General characteristics | |
|---|---|
| Socket | AM5 |
| Supported processors | AMD Ryzen 7000-8000-9000 |
| Form factor | ATX |
| Chipset | AMD B850 |
| Memory | |
| Number of memory slots | 4 |
| Memory | DDR5 DIMM, 4800-8200 MHz |
| Number of memory channels | two-channel |
| Maximum memory capacity | 256 GB |
| Disk controllers | |
| Number of SATA 6Gb/s connectors | 4 |
| Number of M.2 slots | 3 |
| RAID support | RAID: 0, 1, 10 |
| Slot type M.2 | 1 x 2280/22110 (PCIe 4.0 x4), 1 x 2280/22110 (PCIe 5.0 x4), 1 x 2280/22110 (PCIe 4.0 x2) |
| Expansion slots | |
| Number of PCI-E x16 slots | 4 |
| Audio / Video | |
| Audio | 7.1 |
| Network | |
| Ethernet | 2.5 Gigabit Ethernet |
| Wi-Fi | 802.11be |
| Bluetooth | yes |
| Rear Connectors | PS/2, 4 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen2, HDMI, DisplayPort, RJ-45 |
| Cooling system type | passive |
