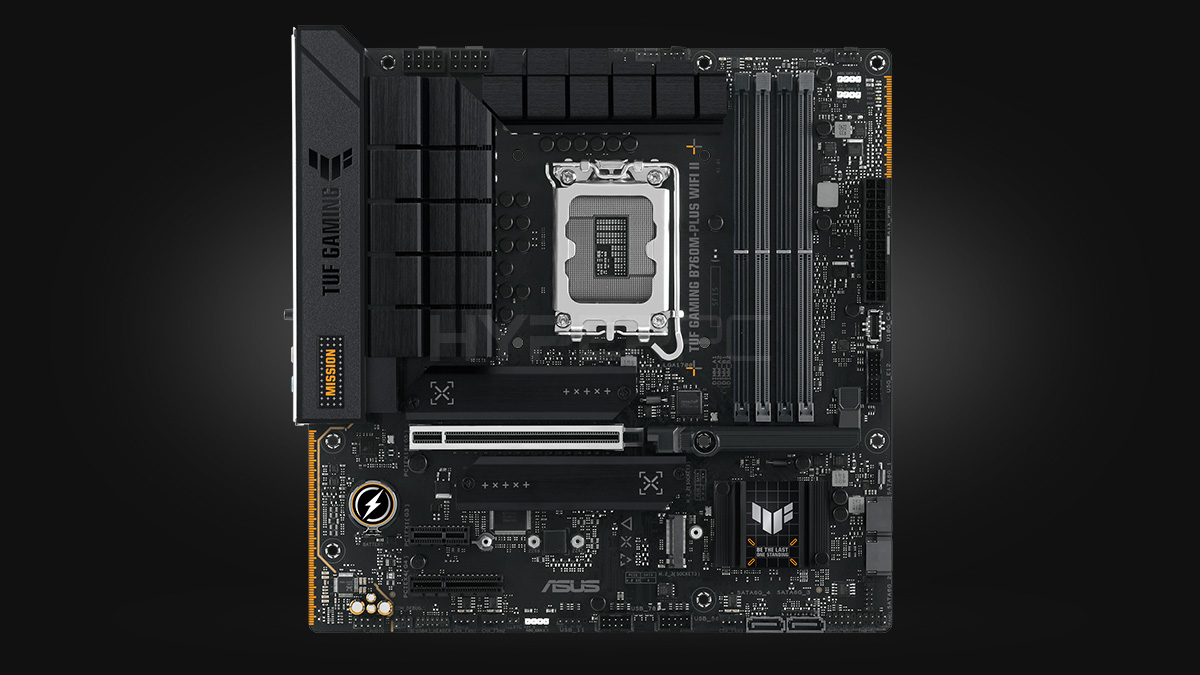

![ASUS TUF B760M-PLUS II [DDR5, Wi-Fi]](/images/catalog/hardware/motherboards/1700/asus/tuf-b760m-plus-ii/asus-tuf-b760m-plus-ii.jpg)
ASUS TUF B760M-PLUS II [DDR5, Wi-Fi]
The TUF GAMING B760M-PLUS II combines all the essential elements of the latest Intel® processors with gaming-ready features and proven reliability. Built with high-reliability components, an enhanced power system and comprehensive cooling, this motherboard exceeds expectations, delivering stable performance for marathon gaming sessions and cutting-edge AI applications.
ASUS TUF B760M-PLUS II [DDR5, Wi-Fi] specs
| General characteristics | |
|---|---|
| Socket | LGA1700 |
| Supported processors | Intel Core 12/13/14th |
| Form factor | microATX |
| Chipset | Intel B760 |
| Memory | |
| Number of memory slots | 4 |
| Memory | DDR5 DIMM, 4800-7800 MHz |
| Number of memory channels | two-channel |
| Maximum memory capacity | 192 GB |
| Disk controllers | |
| Number of SATA 6Gb/s connectors | 4 |
| Number of M.2 slots | 3 |
| RAID support | RAID: 0, 1, 5, 10 |
| Slot type M.2 | 1 x 2242/2260/2280 (PCIe 4.0 x4), 1 x 2242/2260/2280 (PCIe 4.0 x2), 1 x 2242/2260/2280 (PCIe 4.0 x4) |
| Expansion slots | |
| Number of PCI-E x4 slots | 1 |
| Number of PCI-E x16 slots | 1 |
| Number of PCI-E x1 slots | 1 |
| Audio / Video | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Network | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wi-Fi | 802.11ae |
| Bluetooth | yes |
| Rear Connectors | 4 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen2, USB 3.2 Gen2x2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF |
| Cooling system type | passive |
