ASUS ROG CROSSHAIR X870E HERO [DDR5, Wi-Fi]
The ROG Crosshair X870E Hero motherboard, with its full-size form factor, allows you to build a powerful gaming platform. It ensures reliable thermal regulation, ultra-fast connectivity, and comprehensive support for PCIe 5.0 and DDR5 to unlock the performance of AMD Ryzen™ 9000 series processors. The board stands out with its classic color scheme, massive cooling elements, and multi-zone lighting with a programmable RGB palette.
I need to consult with an expert.
-
Loading shipping optionsCouldn't find any shipping options. Choose another location or contact us and we'll be sure to work something out.- United Arab Emirates
- Bahrain
- Kuwait
- Oman
- Qatar
- Saudi Arabia
-
Pickup from store
-
DubaiBelresheed Building, Office 8, Nad Al Hamar, Dubai, UAE, 10 AM - 7 PM, Monday to FridayPickup on 23 November
-
Performance
- Dual ProCool II power connectors
- Power module 18(110A)+2(110A)+2(80A)
- Expansion slots
- 2 x PCIe 5.0 x16 Slots
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series processors
- DDR5, 4 X DIMM
- Max. 192GB
- Dual-channel mode
- 5 x M.2 slots
- 3 x M.2 2280 (PCIe 5.0 x4)
- 2 x M.2 2280 (PCIe 4.0 x4)
Cooling
- Power system heatsinks
- Heatsinks for five M.2 slots
Three M.2 slots with backplates and thermal pads - 4-pin PWM fan connectors
Gaming Immersion
- Polymo lighting II
- SupremeFX 7.1 ALC4082 audio codec
- ESS® ES9219 QUAD DAC
- Stereo output (signal/noise ratio 120 dB)
- Line input (signal/noise ratio 110 dB)
- Gold-plated audio jacks
Dolby Atmos surround sound technology
- Three addressable RGB headers (3-pin)
Connectivity
- BIOS Flashback button
- Clear CMOS button
- 1 X HDMI port
- 2 x USB4 (40Gbps) ports
(USB Type-C) - 8 x USB (10 Gbps) ports
(6 x Type-A + 2 x USB Type-C) - Realtek® 5Gb Ethernet port
- Intel® 2.5Gb Ethernet port
- Wi-Fi 7
- Optical S/PDIF out
- 2 gold-plated audio jacks
- 1 internal USB 20Gbps connector
(USB Type-C with QC4+ support) - 4 SATA 6Gb/s ports
- 1 X SLIMSAS connector
PCIe 4.0 x4 mode support - 1 internal USB 20Gbps connector
(USB Type-C)
AI OVERCLOCKING
Tuning is now faster and smarter than ever. ASUS AI Overclocking analyzes the CPU and cooling system to predict optimal settings and push the system to its limits. The predicted values can be applied automatically or used as a starting point for further experimentation.
PCIE 5.0
M.2 Slots
The ROG Crosshair X870E Hero features five integrated M.2 slots, three of which support PCIe 5.0 interface, delivering blazing speeds of 16 GB/s, while the others still offer impressive 8 GB/s with PCIe 4.0. The board is also equipped with a SlimSAS connector, supporting PCIe 4.0 x4 mode using a data cable.
PCIE 5.0 Expansion Slots
Both x16 expansion slots are equipped with the PCIe 5.0 interface, providing incredible speeds of up to 64 GB/s for compatible devices. To withstand the load of massive graphics cards, they are also secured with SafeSlot brackets, and the top slot can be easily released thanks to the PCIe Slot Q-Release Slim.

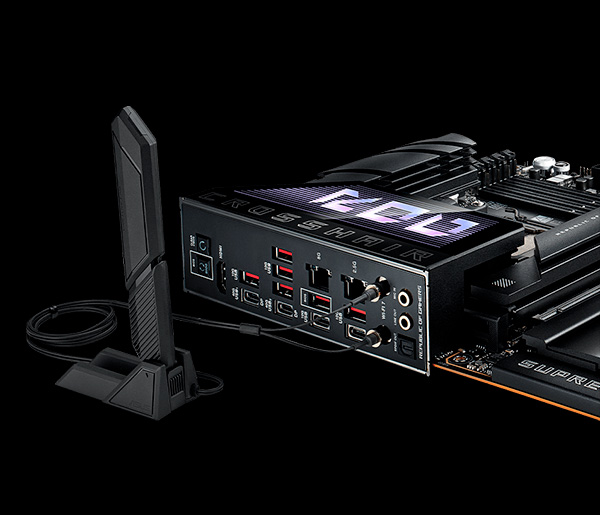

AI Networking II
AI Networking II combines intelligent technologies for continuous network performance optimization, ensuring reliable and seamless connectivity while unleashing the full speed of WiFi 7.
DDR5 Domination
For those looking to push DDR5 speeds to the max, the ROG Crosshair X870E Hero offers AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further enhance performance through an extensive set of UEFI settings.

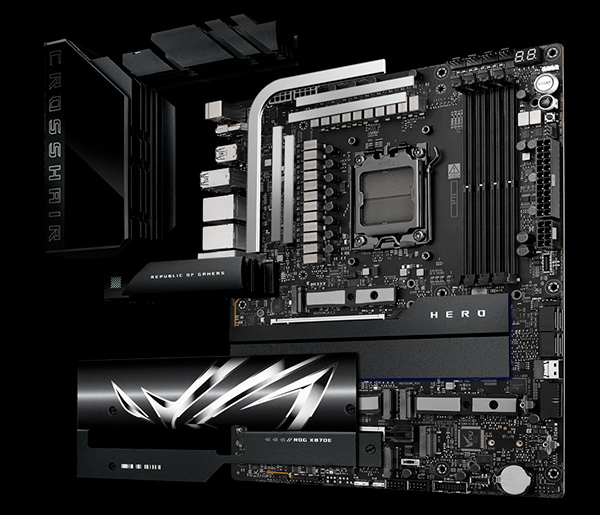

Heatsink Array
The VRM heatsinks on the MOSFETs and chokes are connected via an integrated heat pipe to increase heat dissipation when working with high-performance AMD Ryzen™ 9000 Series processors.
ASUS ROG CROSSHAIR X870E HERO [DDR5, Wi-Fi] specs
| General characteristics | |
|---|---|
| Socket | AM5 |
| Supported processors | AMD Ryzen 7000-8000-9000 |
| Form factor | ATX |
| Chipset | AMD X870 |
| Memory | |
| Number of memory slots | 4 |
| Memory | DDR5 DIMM, 4800-8600 MHz |
| Number of memory channels | two-channel |
| Maximum memory capacity | 192 GB |
| Disk controllers | |
| Number of SATA 6Gb/s connectors | 4 |
| Number of M.2 slots | 5 |
| RAID support | RAID: 0, 1, 5, 10 |
| Slot type M.2 | 3 x 2242/2260/2280 (PCIe 5.0 x4), 1 x 2242/2260/2280 (PCIe 4.0 x4), 1 x 2280 (PCIe 4.0 x4) |
| Expansion slots | |
| Number of PCI-E x16 slots | 2 |
| Audio / Video | |
| Audio | Realtek ALC4082 7.1 |
| Network | |
| Ethernet | 5 Gbit/s |
| Wi-Fi | 802.11be |
| Bluetooth | yes |
| Rear Connectors | 6 x USB 3.2 Gen 2 (Type-A), 2 x USB 3.2 Gen 2, 2 x USB4 (Type-C) |
| Cooling system type | passive |
