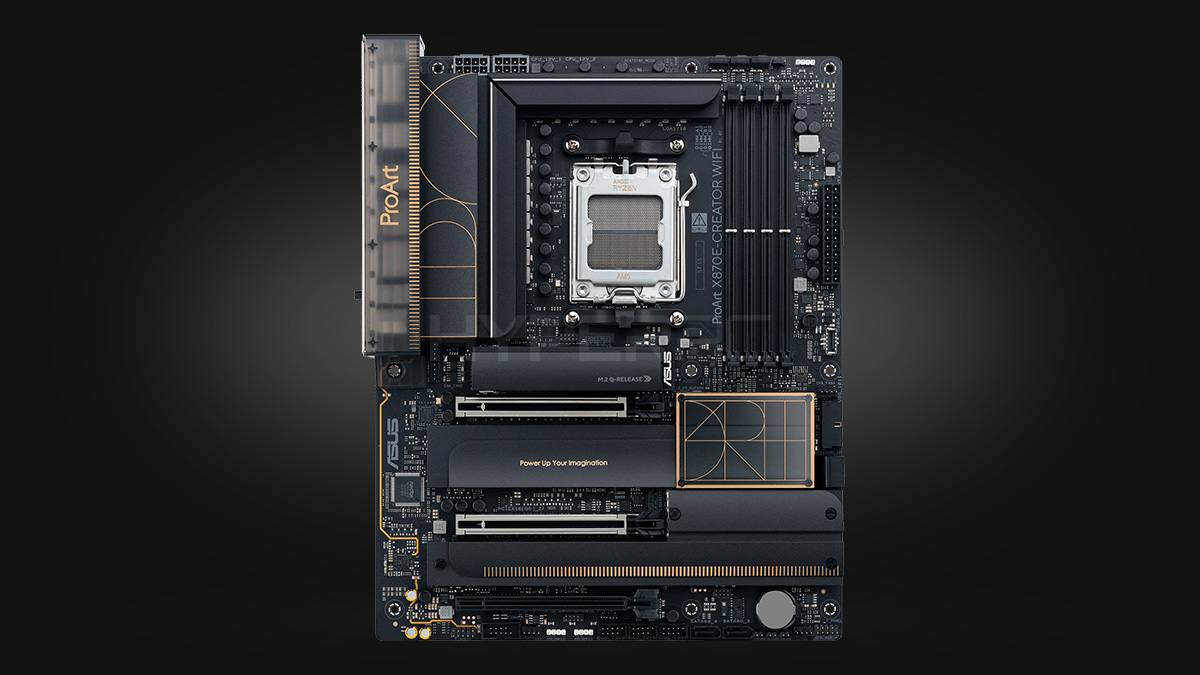

ASUS PROART X870E-CREATOR [DDR5, Wi-Fi]
The ASUS ProArt X870E-Creator motherboard offers possibilities for creators of any level with the maximum performance of the latest AMD Ryzen™ 9000, 8000, and 7000 series processors. It features a 16+2+2 power stage design, DDR5 slots, PCIe 5.0, and lightning-fast connectivity options, including dual USB4, 10Gb and 2.5Gb Ethernet, and WiFi 7.
I need to consult with an expert.
-
Loading shipping optionsCouldn't find any shipping options. Choose another location or contact us and we'll be sure to work something out.- United Arab Emirates
- Bahrain
- Kuwait
- Oman
- Qatar
- Saudi Arabia
-
Pickup from store
-
DubaiBelresheed Building, Office 8, Nad Al Hamar, Dubai, UAE, 10 AM - 7 PM, Monday to FridayPickup on 26 November
-
Performance
- Dual ProCool II power connectors
- Expansion slots
- 2x PCIe 5.0 x16 SafeSlots
(x16 single or x8/x8 dual) - 1 x PCIe 4.0 x16 slot (Max. x4)
- 2x PCIe 5.0 x16 SafeSlots
- Realtek S1220A audio codec
- De-pop circuit
- Audio shielding
- Premium audio capacitors
- Dedicated layers for audio PCB
- 16+2+2 (80A) power stage
- AMD Socket AM5 for AMD Ryzen™ 9000, 8000, & 7000 Series processors
- 4 x DDR5 DIMM
- Dual-channel mode
- 2 x PCIe 5.0 M.2 slots with heatsinks
- 2 x 2280 (PCIe 5.0 x4)
- AMD X870E chipset
- 2 x PCIe 4.0 M.2 slots with heatsinks
- 1 x 2280 (PCIe 4.0 x4)
- 1 x 22110 (PCIe 4.0 x4)
Cooling
- VRM heatsinks
- Heatsinks for M.2 slots
- 4-pin PWM/DC fan headers
All onboard headers support automatic detection of PWM or DC fans - Multiple temperature control zones
Each zone can be configured to monitor and respond to several customizable thermal sensors for efficient cooling based on workload. All settings can be easily managed using Fan Xpert 4 or UEFI. - Chipset heatsink
DIY-Friendly
- Q-Antenna
Attach the WiFi antenna in an instant - M.2 installation convenience
- M.2 Q-Release
A handy latch for quick heatsink removal - M.2 new Q-Latch
A simple locking mechanism that secures an M.2 SSD without special tools - M.2 Q-Slide
Sliding latch design supports 2242, 2260, and 2280 sizes for easy installation
- M.2 Q-Release
- SafeSlot
Ensures more secure PCIe device mounting and better resistance to shearing - Q-DIMM
One-sided clips make memory module installation easy and secure - Q-LED
A diagnostic display that shows issues with the CPU, memory, GPU, or boot device for quick troubleshooting - SafeDIMM
Reinforced metal partition for enhanced support and protection - PCIe Q-Release Slim Slot
Simply tilt the card to the latch mechanism for automatic disconnection from the PCIe slot - Q-Connector
Helps organize front panel cables for a cleaner setup
Connectivity
- DisplayPort™ input port for USB4®
- HDMI® 2.1 port (4K @ 60 Hz)
- 7 x USB 10Gbps ports
- 2 x USB4® ports with DisplayPort™ 1.4 (8K @ 60 Hz)
- 1 x USB 20Gbps Type-C® port
- 10 Gb & 2.5 Gb Ethernet
- BIOS FlashBack™
- 1 x USB 2.0 port
- WiFi 7
- 3 x Audio jacks
- 1 x USB 20Gbps Type-C® front-panel connector with 30-watt PD, QC 4+
- 1 x USB 5Gbps front-panel header
- 4 x SATA 6 Gb/s
- 3 x USB 2.0 headers
- 3 x Aura addressable Gen 2 RGB headers
AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking analyzes the processor and cooling system to predict optimal settings and push the system to its limits. The predicted values can be applied automatically or used as a starting point for further experimentation.
PCIE 5.0
M.2 Slots
The ProArt X870E-Creator WiFi features two PCIe 5.0 M.2 slots for ultra-fast data transfer speeds of up to 128 Gbps. All M.2 slots support NVMe RAID configurations, taking advantage of cutting-edge speeds.
PCIE 5.0 Expansion Slots
Both x16 expansion slots are PCIe 5.0, providing incredible speeds of up to 64 GB/s for compatible devices. To handle the weight of massive GPUs, they are protected with SafeSlot retention brackets, and the top slot can be easily released with Q-Release Slim.
AI Networking II
AI Networking II incorporates intelligent technologies for continuous network performance optimization, ensuring reliable and uninterrupted connectivity, and unlocking the full speed of WiFi 7.
DDR5 Dominance
For those looking to exceed standard DDR5 speeds, ProArt X870E-Creator is ready, with broad support for AMD overclocking profiles (EXPO). Experienced users can further boost performance using a comprehensive set of settings in UEFI.
Robust Power Design
The power stage configuration ensures optimal power delivery, efficiency, stability, and performance for both current and future AMD processors.
ASUS PROART X870E-CREATOR [DDR5, Wi-Fi] specs
| General characteristics | |
|---|---|
| Socket | AM5 |
| Supported processors | AMD Ryzen 7000-8000-9000 |
| Form factor | ATX |
| Chipset | AMD X870 |
| Memory | |
| Number of memory slots | 4 |
| Memory | DDR5 DIMM, 4800-8000 MHz |
| Number of memory channels | two-channel |
| Maximum memory capacity | 192 GB |
| Disk controllers | |
| Number of SATA 6Gb/s connectors | 4 |
| Number of M.2 slots | 4 |
| RAID support | RAID: 0, 1, 10 |
| Slot type M.2 | 2 x 2242/2260/2280 (PCIe 5.0 x4), 1 x 2242/2260/2280 (PCIe 4.0 x4), 1 x 2242/2260/2280/22110 (PCIe 4.0 x4) |
| Expansion slots | |
| Number of PCI-E x16 slots | 3 |
| Audio / Video | |
| Audio | Realtek ALC1220P 7.1 Surround Sound |
| Network | |
| Ethernet | 1 x Marvell® AQtion 10Gb, 1 x Intel® 2.5Gb |
| Wi-Fi | 802.11be |
| Bluetooth | yes |
| Rear Connectors | 2 x USB4®, 1 x USB 20Gbps, 7 x USB 10Gbps, 1 x USB 2.0 |
| Cooling system type | passive |
