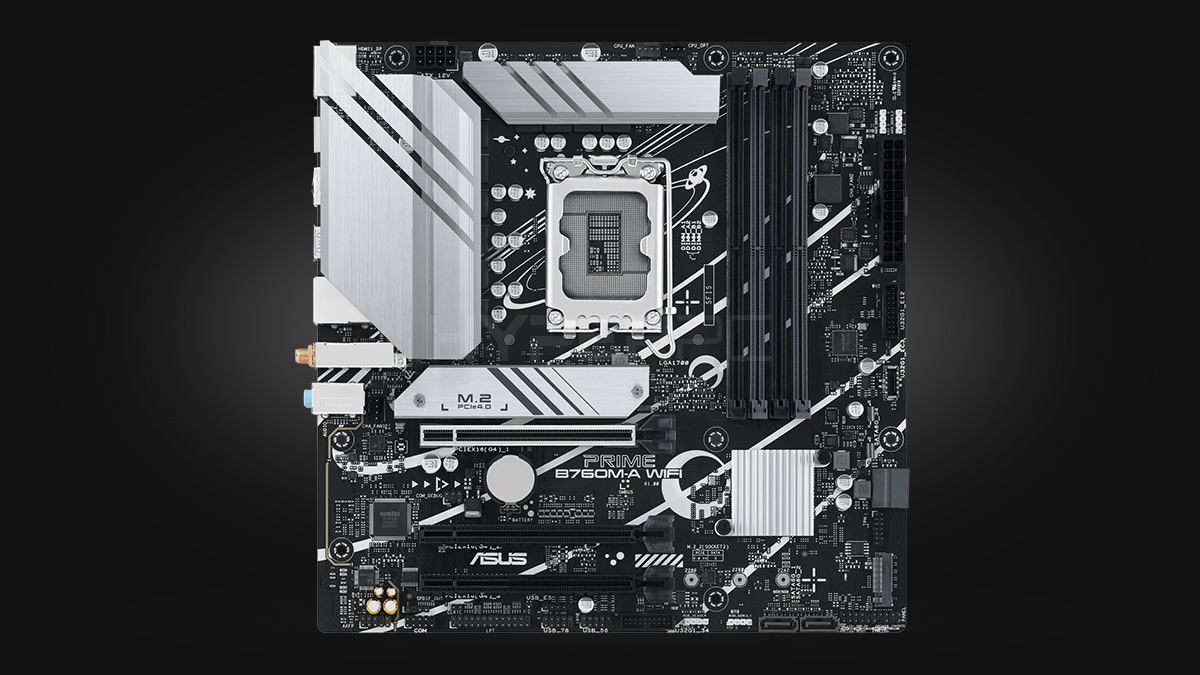

The ASUS PRIME B760M-A is a versatile micro-ATX motherboard designed for users who need reliability and performance. Supporting the latest Intel processors and DDR5 memory, it offers comprehensive connectivity, including PCIe 4.0 and multiple M.2 slots, making it an ideal choice for building a stable and efficient system.
General characteristics | |
---|---|
Socket | LGA1700 |
Supported processors | Intel Core 12/13/14th |
Form factor | microATX |
Chipset | Intel B760 |
Memory | |
Number of memory slots | 4 |
Memory | DDR5 DIMM, 4800-7200 MHz |
Number of memory channels | two-channel |
Maximum memory capacity | 128 GB |
Disk controllers | |
Number of SATA 6Gb/s connectors | 4 |
Number of M.2 slots | 2 |
RAID support | RAID: 0, 1, 5, 10 |
Slot type M.2 | 2242/2260/2280 |
Expansion slots | |
Number of PCI-E x4 slots | 1 |
Number of PCI-E x16 slots | 1 |
Number of PCI-E x1 slots | 1 |
Audio / Video | |
Audio | 7.1 |
Network | |
Ethernet | 2.5 Gb/s |
Wi-Fi | 802.11ax |
Bluetooth | yes |
Rear Connectors | 2 x USB 3.2 Gen 2, 4 x USB 2.0 |
Cooling system type | passive |
