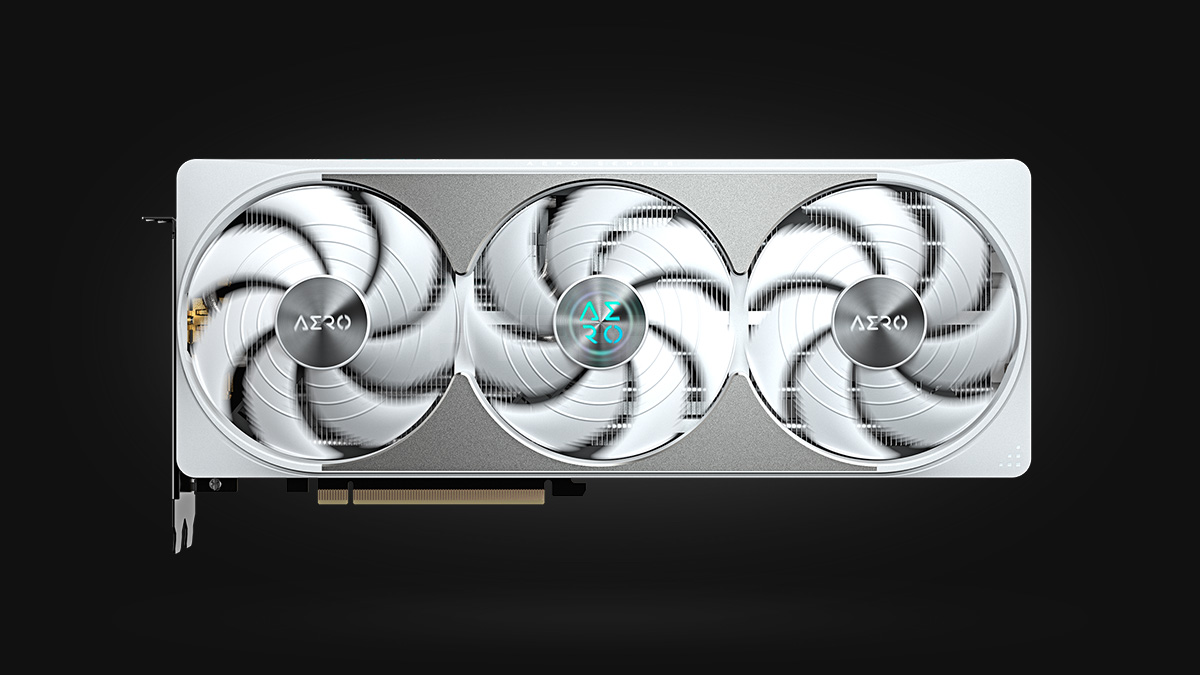

GIGABYTE GeForce RTX 5080 AERO [16GB, 10752 CUDA]

The GIGABYTE GeForce RTX 5080 AERO graphics card features powerful technical specifications. Thanks to the NVIDIA Blackwell architecture and 16GB high-speed GDDR7 memory, high performance is achieved in games with demanding graphics settings. The cooling system keeps the graphics card’s temperature at an optimal level.

NVIDIA Blackwell Architecture

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

Alternate Spinning

The Windforce cooling system delivers exceptional thermal performance by combining advanced technologies, including innovative Hawk fans with alternate spinning.

Efficient Heat Dissipation

The specially shaped and extended heatsink improves airflow for rapid heat dissipation, helping the cooling system maintain optimal temperatures.

Advanced Technologies

A large vapor chamber makes direct contact with the GPU, while enhanced composite copper heat pipes efficiently transfer heat from GPU and VRAM to the heatsink.

Reinforced Structure

The reinforced metal backplate with a bent edge provides outstanding structural integrity.

Reliability in Every Detail

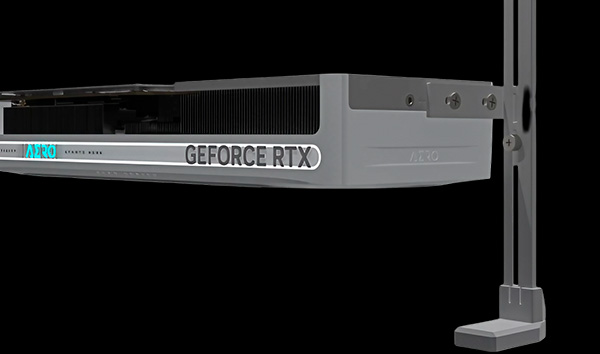

Additional Support

Elegant bracket design provides secure GPU support and enhances your system's overall aesthetics.

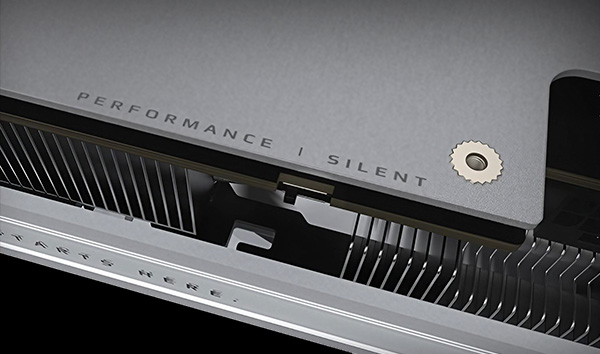

Dual BIOS

Performance mode is set by default for the best performance. Silent mode ensures quieter operation.

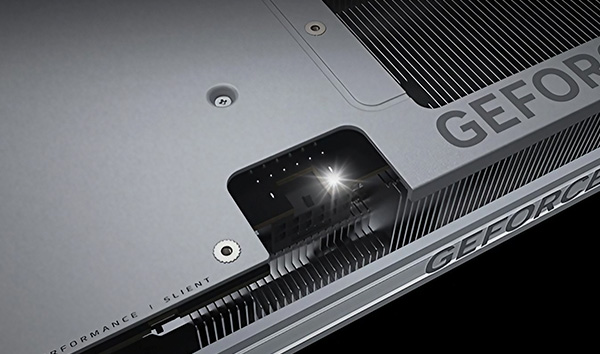

Power Indicator

If any power irregularities occur, the indicator will alert users with a blinking light.

GIGABYTE GeForce RTX 5080 AERO [16GB, 10752 CUDA] specs

General characteristics
Video card type	GeForce
Model GPU	NVIDIA GeForce RTX 5080 16 GB
Graphics Processor	GeForce RTX 5080
Interface	PCI-E 16x 5.0
Technology GPU	5 nm
Number of supported monitors	4
Maximum Resolution	7680x4320
Specifications
GPU frequency	2300 MHz
Maximum frequency with Turbo Boost	2617 MHz
Video memory size	16 GB
Video memory type	GDDR7
Video memory frequency	30000 MHz
Video memory bus width	256 bit
Connection
HDMI	1
DisplayPort	3
Math block
Number of general purpose processors	10752
NVIDIA Tensor Cores	336
NVIDIA RT Cores	84
Number of texture units	336
Number of ROPs	112
Additionally
The need for additional power	16 pin
Recommended PSU Wattage	850 W
TDP	360 W
Number of fans	3
Number of occupied slots	2.5
Dimensions (WxHxD)	304 x 126 x 50 mm
