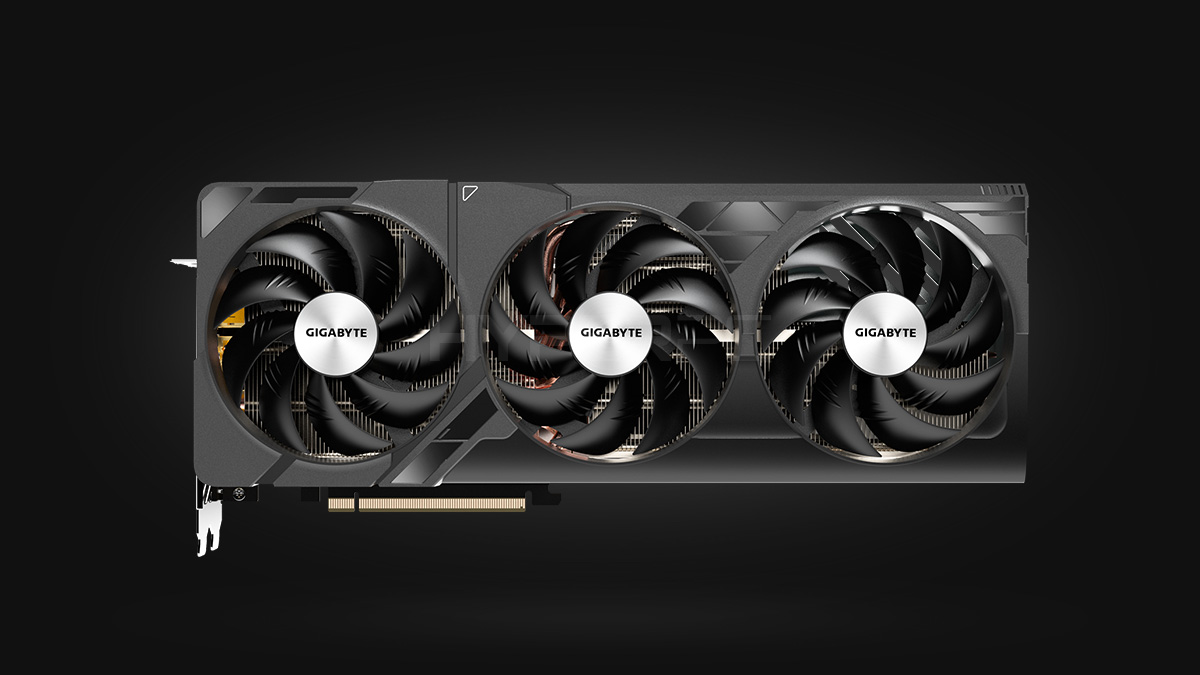

The GIGABYTE GeForce RTX 4080 SUPER WINDFORCE V2 is a high-performance graphics card designed for gamers and creators, featuring advanced ray tracing and AI-enhanced graphics. With its WINDFORCE cooling system, factory overclocking, and robust design, it delivers smooth gameplay, efficient rendering, and reliable performance for demanding tasks.
General characteristics | |
---|---|
Video card type | GeForce |
Model GPU | NVIDIA GeForce RTX 4080 Super 16 GB |
Graphics Processor | GeForce RTX 4080 Super |
Interface | PCI-E 16x 4.0 |
Technology GPU | 5 nm |
Number of supported monitors | 4 |
Maximum Resolution | 7680x4320 |
Specifications | |
GPU frequency | 2295 MHz |
Maximum frequency with Turbo Boost | 2550 MHz |
Video memory size | 16 GB |
Video memory type | GDDR6X |
Video memory frequency | 23000 MHz |
Video memory bus width | 256 bit |
Connection | |
HDMI | 1 |
DisplayPort | 3 |
Math block | |
Number of general purpose processors | 10240 |
NVIDIA Tensor Cores | 320 |
NVIDIA RT Cores | 80 |
Number of texture units | 320 |
Number of ROPs | 112 |
Additionally | |
The need for additional power | 16 pin |
Recommended PSU Wattage | 750 W |
Number of fans | 3 |
Number of occupied slots | 2.9 |
Dimensions (WxHxD) | 330x136x58 mm |
