ASUS TUF GeForce RTX 5070 Ti is a powerful graphics card from the TUF Gaming series. Based on the NVIDIA Blackwell architecture, it features enhanced cooling and power delivery, along with reinforced components for exceptional durability. This model offers a significant performance boost compared to previous generations, delivering high frame rates in modern games at high resolutions and detail settings.
Max AI performance with FP4 and DLSS 4
Optimized for neural shaders
Built for Mega Geometry
Two external fans rotate counterclockwise to reduce turbulence and improve airflow dispersion. All three fans stop when the GPU temperature is below 50°C, ensuring quieter operation during light tasks. They resume operation when the temperature exceeds 55°C, following a speed curve that balances performance and acoustics.
The advanced cooling design includes ASUS's exclusive MaxContact technology, GPU phase-change thermal pads, and efficient Axial-tech fans for superior thermal performance, optimal airflow, and silent operation, all within a durable and ventilated metal exoskeleton.
The high-quality die-cast housing and aluminum backplate prevent PCB flexing and feature large ventilation holes to further increase heat dissipation.
The Aura ARGB lighting on the model's body adds customizable color and functional effects to your build. Combine a wide range of compatible system components and coordinate colors to create a unique theme.

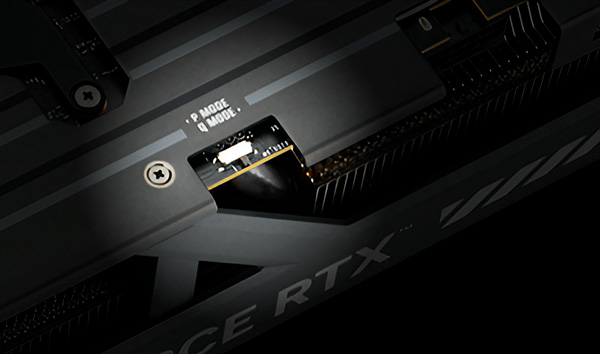

In Performance mode, the fans provide constant cooling for the graphics card, while in Quiet mode, the fan operates less aggressively, ensuring quieter operation at moderate temperatures.

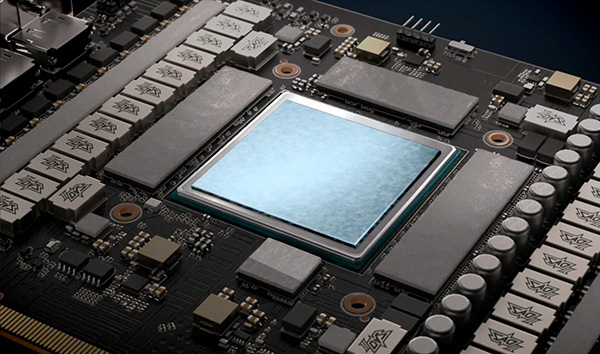

By effectively filling the gaps between the GPU and the thermal module, the phase-change GPU thermal pad ensures excellent heat conductivity and improved heat dissipation.

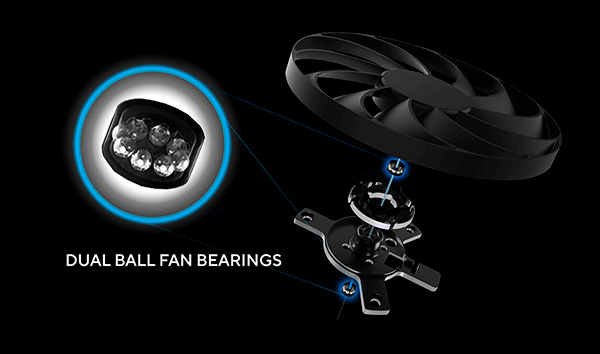

The dual ball bearings in the fan are durable and can last twice as long as sleeve bearings.
General characteristics | |
---|---|
Video card type | GeForce |
Model GPU | NVIDIA GeForce RTX 5070 Ti 16 GB |
Graphics Processor | GeForce RTX 5070 Ti |
Interface | PCI-E 16x 5.0 |
Technology GPU | 5 nm |
Number of supported monitors | 4 |
Maximum Resolution | 7680x4320 |
Specifications | |
GPU frequency | 2300 MHz |
Maximum frequency with Turbo Boost | 2588 MHz |
Video memory size | 16 GB |
Video memory type | GDDR7 |
Video memory frequency | 28000 MHz |
Video memory bus width | 256 bit |
Connection | |
HDMI | 2 |
DisplayPort | 3 |
Math block | |
Number of general purpose processors | 8960 |
NVIDIA Tensor Cores | 280 |
NVIDIA RT Cores | 70 |
Number of texture units | 280 |
Number of ROPs | 128 |
Additionally | |
The need for additional power | 16 pin |
Recommended PSU Wattage | 700 W |
TDP | 300 W |
Number of fans | 3 |
Number of occupied slots | 3.15 |
Dimensions (WxHxD) | 329 x 140 x 62.5 mm |
