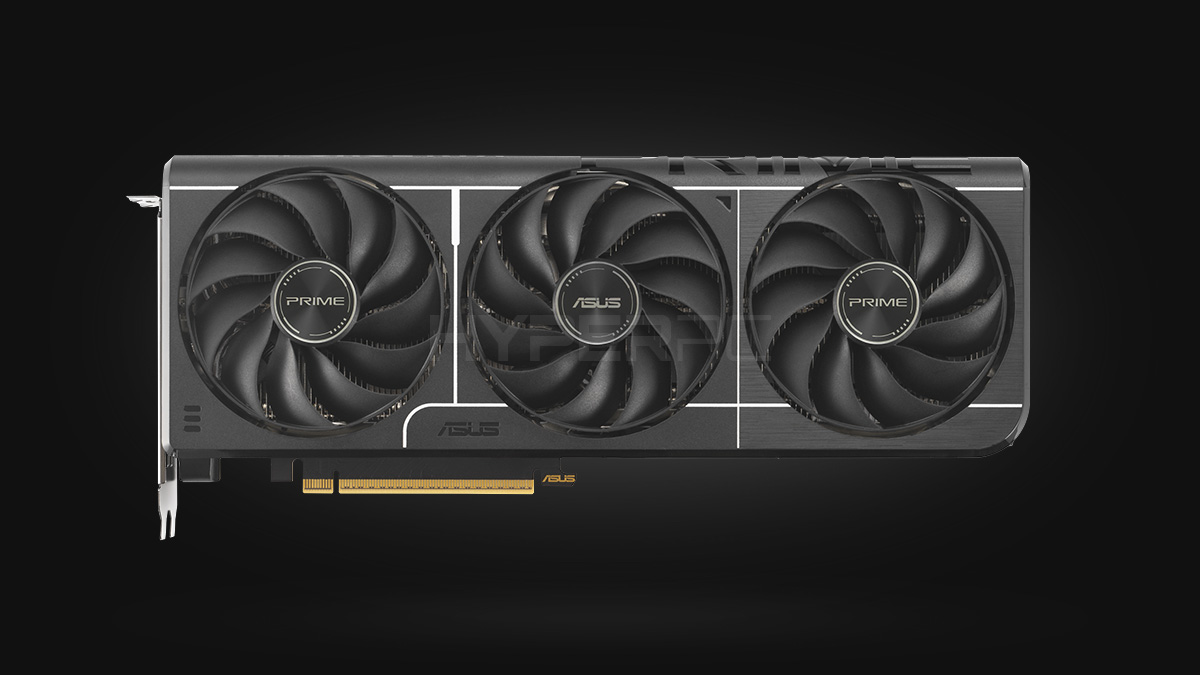

ASUS PRIME GeForce RTX 5060 Ti OC [16GB, 4608 CUDA]
The ASUS GeForce RTX 5060 Ti PRIME graphics card is designed for building and upgrading gaming computers. The model is equipped with a GeForce RTX 5060 Ti graphics processor. The potential of the video chip is realized by 16 GB of GDDR7 memory. The video adapter supports resolutions up to 7680x4320 (8K Ultra HD).
ASUS PRIME GeForce RTX 5060 Ti OC [16GB, 4608 CUDA] specs
| General characteristics | |
|---|---|
| Video card type | GeForce |
| Model GPU | NVIDIA GeForce RTX 5060 Ti 16 GB |
| Graphics Processor | GeForce RTX 5060 Ti |
| Interface | PCI-E 16x 5.0 |
| Technology GPU | 5 nm |
| Number of supported monitors | 4 |
| Maximum Resolution | 7680x4320 |
| Specifications | |
| GPU frequency | 2407 MHz |
| Maximum frequency with Turbo Boost | 2572 MHz |
| Video memory size | 16 GB |
| Video memory type | GDDR7 |
| Video memory frequency | 28000 MHz |
| Video memory bus width | 128 bit |
| Connection | |
| HDMI | 1 |
| DisplayPort | 3 |
| Math block | |
| Number of general purpose processors | 4608 |
| NVIDIA Tensor Cores | 144 |
| NVIDIA RT Cores | 36 |
| Number of texture units | 144 |
| Number of ROPs | 48 |
| Additionally | |
| The need for additional power | 8-pin |
| Recommended PSU Wattage | 550 W |
| TDP | 180 W |
| Number of fans | 3 |
| Number of occupied slots | 2.5 |
| Dimensions (WxHxD) | 304 x 120 x 50 mm |
