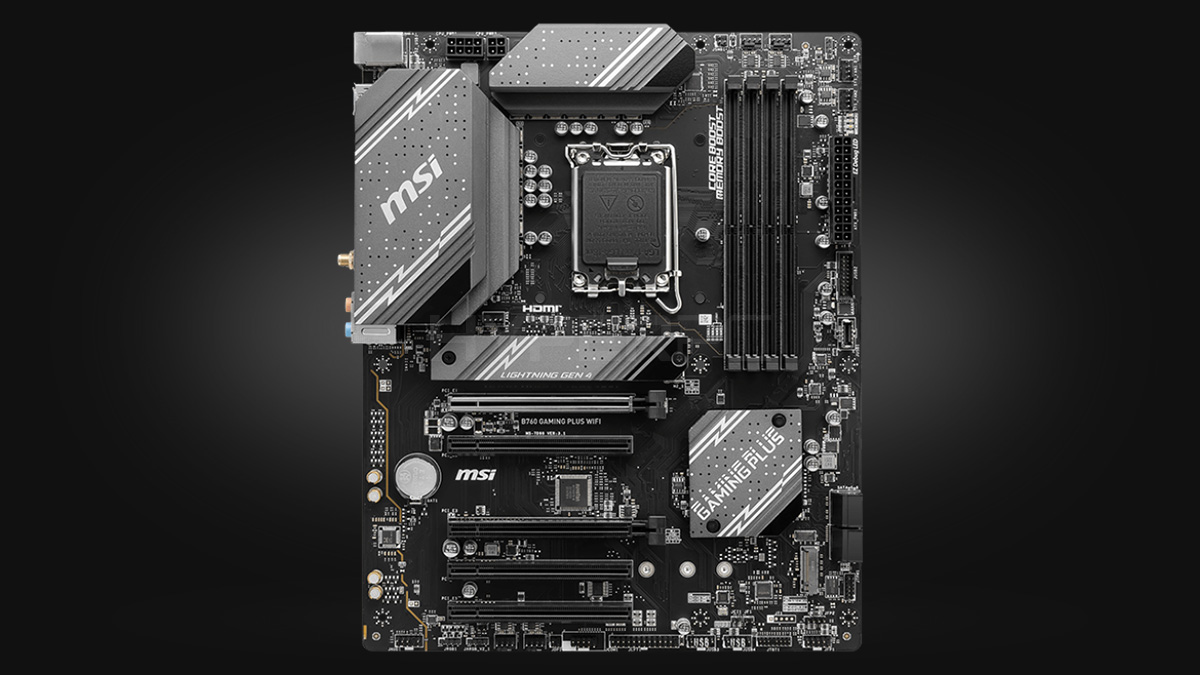

لوحة الأم B760 GAMING PLUS WIFI تقدم ميزات قوية وواي فاي مدمج مع دعم ذاكرة DDR5 للاعبين الذين يريدون كل شيء.
General characteristics | |
---|---|
Socket | LGA1700 |
Supported processors | Intel Core 12/13/14th |
Form factor | ATX |
Chipset | Intel B760 |
Memory | |
Number of memory slots | 4 |
Memory | DDR5 DIMM, 4000-6800 MHz |
Number of memory channels | two-channel |
Maximum memory capacity | 192 GB |
Disk controllers | |
Number of SATA 6Gb/s connectors | 4 |
Number of M.2 slots | 2 |
RAID support | RAID: 0, 1, 5, 10 |
Slot type M.2 | (M) 2242/2260/2280 SATA/PCIe 4.0 x4, (M) 2242/2260/2280/22110 PCIe 4.0 x4 |
Expansion slots | |
Number of PCI-E x16 slots | 5 |
Audio / Video | |
Audio | Realtek ALC897 |
Network | |
Ethernet | 2.5 Gbit/s |
Wi-Fi | 802.11ax |
Bluetooth | yes |
Rear Connectors | USB 2.0 x4, USB 3.2 Gen2 Type-C, USB 3.2 Gen2 Type A x2 |
