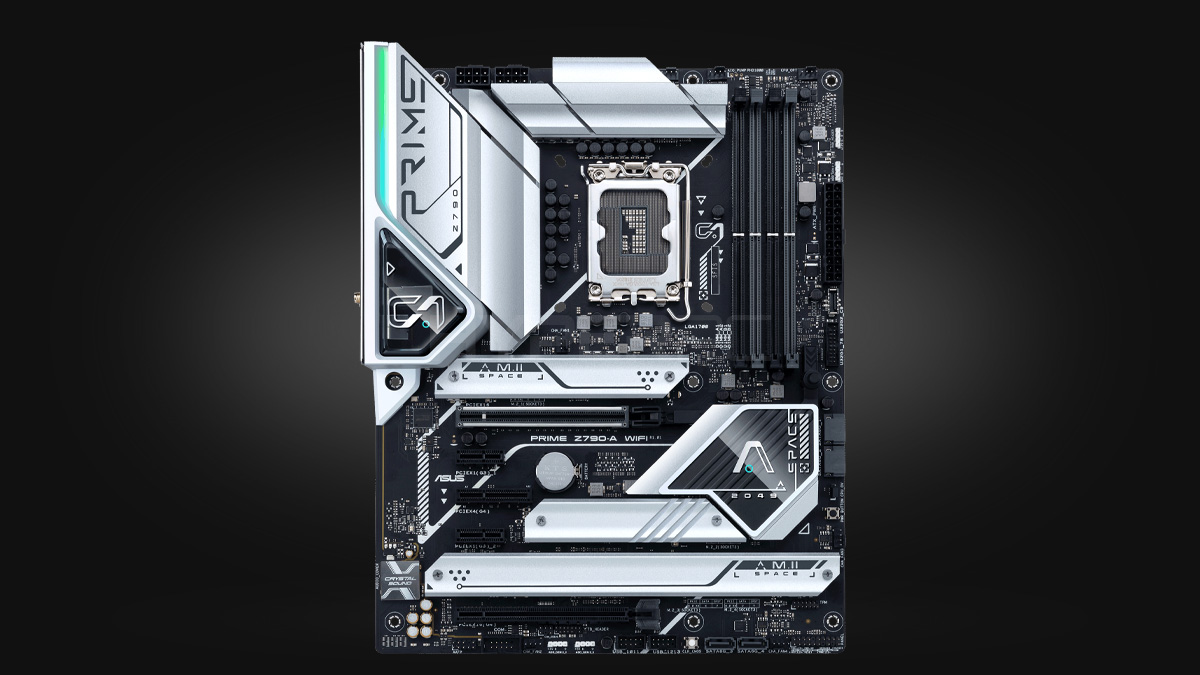

تقدم لوحة الأم ASUS PRIME Z790-A WIFI كل هذا ضمن حزمة أنيقة ذات مظهر مستقبلي، محورها تصميم جمالي يشبه سفينة فضائية، مع لوحة اسم وغطاء شريحة بلون فضي.
General characteristics | |
---|---|
Socket | LGA1700 |
Supported processors | Intel Core 12/13/14th |
Form factor | ATX |
Chipset | Intel Z790 |
Memory | |
Number of memory slots | 4 |
Memory | DDR5 DIMM, 4800-7200 MHz |
Number of memory channels | two-channel |
Maximum memory capacity | 192 GB |
Disk controllers | |
Number of SATA 6Gb/s connectors | 6 |
Number of M.2 slots | 4 |
RAID support | RAID: 0, 1, 5, 10 |
Slot type M.2 | (M) 2242/2260/2280 PCIe 4.0 x4, (M) 2242/2260/2280/22110 SATA/PCIe 4.0 x4, 2 x (M) 2242/2260/2280/22110 PCIe 4.0 x4 |
Expansion slots | |
Number of PCI-E x4 slots | 1 |
Number of PCI-E x16 slots | 2 |
Number of PCI-E x1 slots | 2 |
Audio / Video | |
Audio | Realtek ALC S1220A |
Network | |
Ethernet | 2.5 Gbit/s |
Wi-Fi | 802.11ax |
Bluetooth | yes |
Rear Connectors | USB 3.2 Gen1 Type A x4, USB 3.2 Gen2 Type-C, USB 3.2 Gen2 Type A x2, USB 3.2 Gen2x2 Type-C |
Cooling system type | passive |
